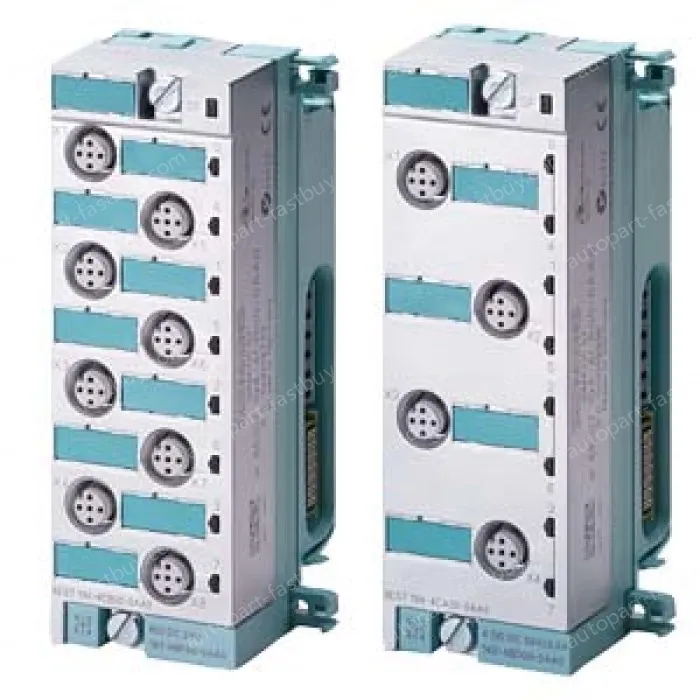

6ES7142-4BD00-0AA0 ET200PRO, EM 4DO 24V DC/2.0A

SIMATIC DP, ELECTRONIC MODULE FOR ET200PRO, 4 DO DC 24V, 2.0A; MODULE DIAGNOSTICS; INCLUSIVE BUS MODULE, CONNECTING MODULE IO 6ES7194-4..00-0AA0 MUST BE ORDERED SEPERATELY

FH technology

Module for fail-safe applications

Supply voltage

Load voltage 2L+

Rated value (DC)

24 V

Short-circuit protection

Yes; per channel, electronic

Reverse polarity protection

Yes; against destruction; load increasing

Input current

from load voltage 2L+ (without load), max.

20 mA

from backplane bus 3.3 V DC, max.

20 mA

Power loss

Power loss, typ.

2 W

Address area

Address space per module

with packing

4 bit

without packing

1 byte

Digital outputs

Number of digital outputs

Short-circuit protection

Yes

Response threshold, typ.

Limitation of inductive shutdown voltage to

2L+ (-47 V)

Controlling a digital input

Yes

Switching capacity of the outputs

Lamp load, max.

10 W

Load resistance range

lower limit

12 Ω

upper limit

4 kΩ

Output voltage

for signal "1", min.

2L+ (-0,8 V)

Output current

for signal "1" rated value

2 A

for signal "0" residual current, max.

0.5 mA

Parallel switching of 2 outputs

for uprating

for redundant control of a load

Yes

Switching frequency

with resistive load, max.

100 Hz

with inductive load, max.

0.5 Hz

on lamp load, max.

1 Hz

Total current of the outputs (per group)

all mounting positions

up to 55 °C, max.

4 A

Cable length

Cable length, shielded, max.

30 m

Cable length unshielded, max.

30 m

Interrupts/diagnostics/status information

Diagnostic messages

Diagnostic functions

Yes

Diagnostic information readable

Yes

Short-circuit

Yes; Short-circuit of outputs to ground; module by module

Diagnostics indication LED

Group error SF (red)

Yes

Status indicator digital output (green)

Yes

Galvanic isolation

Galvanic isolation digital outputs

between the channels

between the channels and the backplane bus

Yes

Isolation

Isolation tested with

500 V DC

Dimensions

Width

45 mm

Height

130 mm

Depth

35 mm

Weights

Weight, approx.

140 g

Status

Jul 14, 2014

6ES7142-4BD00-0AA0

SIMATIC DP, electronic module for ET 200 PRO, 4 DO 24 V DC, 2.0A; Module diagnostics; incl. bus module, Connection module IO 6ES7194-4..00-0AA0 order separately

★ ★ ★ ★ ★
