      IO-Link master
      • IO-Link master
      • IO-Link master
      • IO-Link master

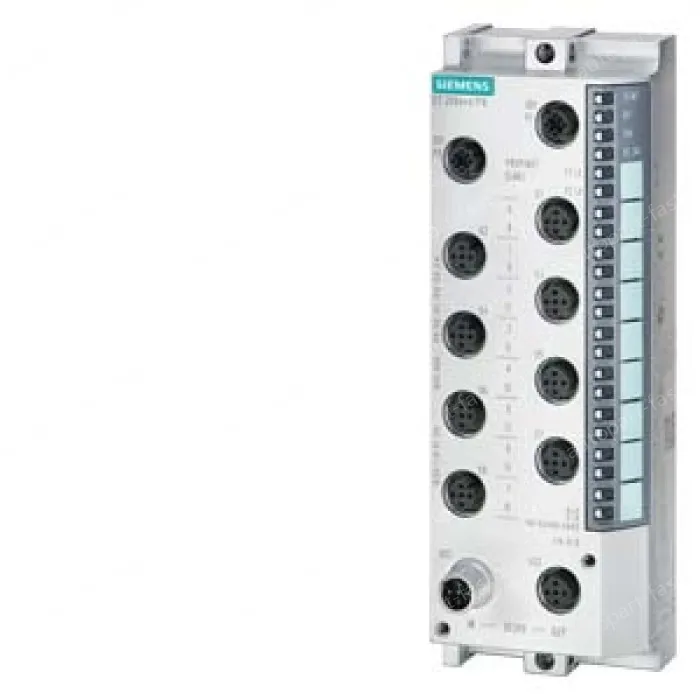

      IO-Link master

      ★★★★★4.93963 Reviews

      Wholesale Price

      Model: 6ES7148-6JA00-0AB0

      Order No:

      SKU: 10000003900301

      Category: ET200

      Brand: SIEMENS

      Size: 7.10CM, 20.00CM, 6.00CM,0.00cm

      Weight: 0.00KG

      Product Selection Engineer: wuShengpeng

      Leading

      Shipping

      Warehouse

      China

      QTY
      -+

      Customer Service Guarantee

      100% secure payment

      Quality Guarantee

      No Reason Returns

      You May Also Like

      Selling List

      Description Reviews
      6ES7148-6JA00-0AB0 ET 200ECO PN: IO-LINK MASTER
      Artikelnummer6ES7148-6JA00-0AB0
      SIMATIC DP, ET 200ECO PN, IO-LINK MASTER, 4IO-L + 8DI + 4DO 24V DC/1.3A 8 X M12, DOUBLE-ASSIGNEMENT, DEGREE OF PROTECTION IP67
      General information
      Vendor identification (VendorID)002AH
      Device identifier (DeviceID)0306H
      Supply voltage
      24 V DCYes
      permissible range, lower limit (DC)20.4 V
      permissible range, upper limit (DC)28.8 V
      Reverse polarity protectionYes
      Load voltage 2L+
      ● Rated value (DC)24 V
      ● permissible range, lower limit (DC)20.4 V
      ● permissible range, upper limit (DC)28.8 V
      ● Reverse polarity protectionYes
      Input current
      from load voltage 1L+ (unswitched voltage)4 A
      from load voltage 2L+, max.4 A
      Encoder supply
      Number of outputs6
      Output current
      ● Output current, rated value200 mA; 100 mA per output to X5-X6
      24 V encoder supply
      ● Short-circuit protectionYes
      Power loss
      Power loss, typ.8 W
      Digital inputs
      Number of digital inputs8
      Input characteristic curve in accordance with IEC 61131, type 3Yes
      Number of simultaneously controllable inputs
      all mounting positions
      — up to 60 °C, max.8
      Input voltage
      ● Rated value, DC24 V
      ● for signal "0"-3 to +5 V
      ● for signal "1"11 to 30 V
      Input current
      ● for signal "0", max. (permissible quiescent current)1.5 mA
      ● for signal "1", typ.7 mA
      Input delay (for rated value of input voltage)
      for standard inputs
      — at "0" to "1", max.typically 3 ms
      — at "1" to "0", max.typically 3 ms
      Cable length
      ● Cable length unshielded, max.30 m
      Digital outputs
      Number of digital outputs4
      Short-circuit protectionYes; Electronic
      ● Response threshold, typ.1,8 A
      Limitation of inductive shutdown voltage toTyp. (L1+, L2+) -47 V
      Controlling a digital inputYes
      Switching capacity of the outputs
      ● on lamp load, max.5 W
      Output current
      ● for signal "1" rated value1.3 A; Maximum
      ● for signal "0" residual current, max.1.5 mA
      Parallel switching of 2 outputs
      ● for upratingNo
      ● for redundant control of a loadYes
      Switching frequency
      ● with resistive load, max.100 Hz
      ● with inductive load, max.0.5 Hz
      ● on lamp load, max.1 Hz
      Total current of the outputs (per group)
      all mounting positions
      — up to 60 °C, max.3.9 A
      Cable length
      ● Cable length unshielded, max.30 m
      Interfaces
      Transmission procedure100BASE-TX
      Transmission rate, max.100 Mbit/s
      PROFINET IO
      ● Number of PROFINET interfaces1
      ● AutocrossingYes
      ● automatic detection of transmission rateYes
      ● integrated switchYes
      PROFINET IO Device
      — IRT with the option "high flexibility", supportedYes
      — Prioritized startupYes
      Protocols
      PROFINET IOYes
      PROFINET CBANo
      PROFIsafeNo
      Protocols (Ethernet)
      ● SNMPYes
      ● DCPYes
      ● LLDPYes
      ● pingYes
      ● ARPYes
      IO-Link
      Number of ports4
      ● of which simultaneously controllable4
      Transmission rate4.8 kBd (COM1); 38.4 kBd (COM2)
      Cable length unshielded, max.20 m
      Operating modes
      ● IO-LinkYes
      ● DIYes
      ● DQYes
      Connection of IO-Link devices
      ● via three-wire connectionYes
      Interrupts/diagnostics/status information
      Status indicatorYes; Green LED
      Alarms
      ● Diagnostic alarmYes
      Diagnostic messages
      ● Diagnostic functionsYes
      ● Diagnostic information readableYes
      ● Monitoring the supply voltageYes; Green "ON" LED
      ● Wire-break in actuator cableYes
      ● Wire-break in signal transmitter cableYes
      ● Short-circuitYes
      ● Short-circuit encoder supplyYes
      ● Group errorYes; Red/yellow "SF/MT" LED
      Galvanic isolation
      between the load voltagesYes
      between load voltage and all other switching componentsNo
      between Ethernet and electronicsYes
      Galvanic isolation digital inputs
      ● between the channelsNo
      Galvanic isolation digital outputs
      ● between the channelsNo
      Permissible potential difference
      between different circuits75 VDC / 60 VAC
      Isolation
      tested with
      ● 24 V DC circuits500 V
      ● Interface1 500 V; According to IEEE 802.3
      Degree and class of protection
      IP65Yes
      IP66Yes
      IP67Yes
      Connection method
      M12Yes
      Dimensions
      Width60 mm
      Height175 mm
      Depth49 mm
      Weights
      Weight (without packaging)910 g
      last modified:31.07.2014
      6ES7148-6JA00-0AB0
      SIMATIC DP, ET 200ECO PN, IO-Link master, 4IO-L+8DI+4DO 24 V DC/1.3A 8xM12, Duplicate assignment, Degree of protection IP67
