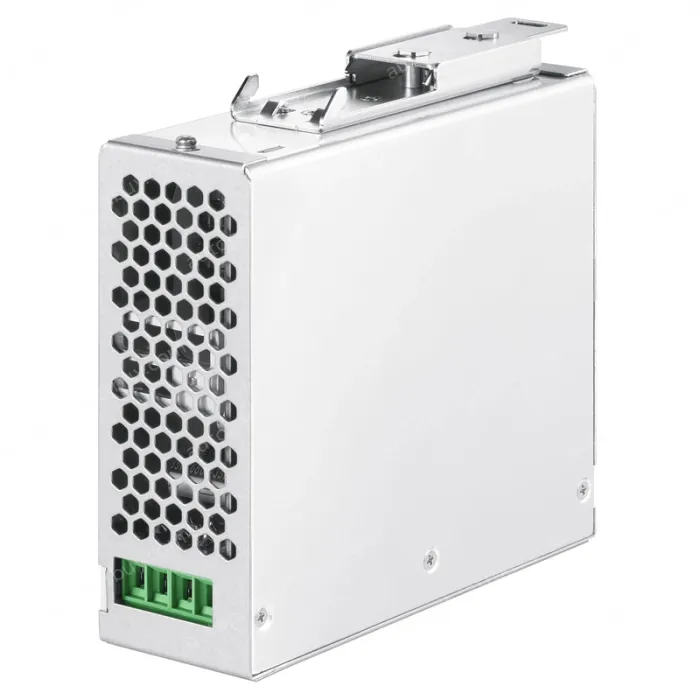

TL-IP150D-24 is TP-LINK's DIN-rail industrial power supply designed for industrial environments. It has an output voltage of 24VDC and a maximum output power of 150W.

• Stable output voltage of 24V, maximum output power of 150W, support dual output
• -20°C~75°C wide temperature operation (refer to the manual for details)
• Wide voltage design to adapt to global mains voltage
• Selected high-specification long-life capacitor parts
• Support short-circuit protection, open-loop protection, overload protection, and over-temperature protection
• Passed 100% full load aging test
• Support rail mounting

-20°C~75°C working temperature design, no fear of extreme temperatures

TL-IP150D-24 is designed in accordance with industrial-grade standards, and can work in a steady-state environment with a wide temperature range of -20°C~75°C (refer to the manual "Temperature-Load Curve Diagram" for details), meeting various harsh industrial environment applications

Wide voltage design, stable dual output 24VDC

Wide voltage design, can support 100~240VAC voltage input, adapt to the global mains voltage, and ensure stable dual output 24VDC, to meet the needs of various industrial environments

With a power output of up to 150W, it can be used in a wide range of applications

The maximum output power can reach 150W, which is suitable for mainstream network cameras, wireless APs, Ethernet switches, routers and other equipment on the market, and has a wide range of applications

Selected devices to effectively improve product reliability

Select high-specification long-life capacitors to greatly improve the service life

Adopt TP-LINK's strict standard production process for industrial products, and 100% full-load long-term aging test

Convenient installation

Support rail installation, easy and fast installation

Multiple protections

It supports surge protection, short circuit protection, open-loop protection, overload protection, and over-temperature protection, providing multiple protections to ensure that the equipment works stably for a long time

Output parameters

Enter the parameters

Other
