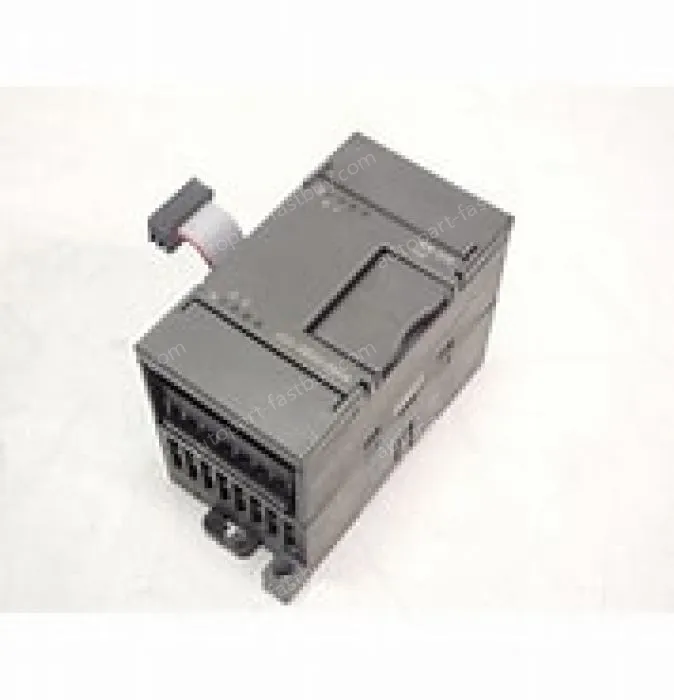

SIEMENS S7-200 Digital Modules

Ship to Stock in: Warehouse

★★★★★4.91363 Reviews

Wholesale Price

Model: 6ES7222-1BD22-0XA0

Order No:

SKU: 10000000063801

Category: S7-200

Brand: SIEMENS

Size: 0.00cm, 0.00cm, 0.00cm,0.00cm

Weight: 0.60kg

Product Selection Engineer: wuShengpeng

Leading

Customer Service Guarantee

100% secure payment

Quality Guarantee

No Reason Returns

You May Also Like

Selling List

Description Reviews

6ES7222-1BD22-0XA0 EM222, 4DO, DC 24V, 5A

SIMATIC S7-200, DIGITAL OUTPUT EM 222, FOR S7-22X CPU ONLY, 4DO, 4-24V DC; 5 A/POINT SOURCE

Supply voltage

Load voltage L+

Rated value (DC)

24 V

permissible range, lower limit (DC)

20.4 V

permissible range, upper limit (DC)

28.8 V

Input current

from backplane bus 5 V DC, max.

40 mA

Power loss

Power loss, typ.

3 W

Digital outputs

Number of digital outputs

Short-circuit protection

Limitation of inductive shutdown voltage to

L+ (-48 V)

Output voltage

for signal "1", min.

20 V DC

Output current

for signal "1" permissible range for 0 to 40 °C, max.

5 A

for signal "1" permissible range for 0 to 55 °C, max.

5 A

for signal "0" residual current, max.

30 µA

Total current of the outputs (per group)

all mounting positions

up to 40 °C, max.

20 A

maximum current per conductor/group

5 A

horizontal installation

up to 55 °C, max.

20 A

Relay outputs

Switching capacity of contacts

with inductive load, max.

5 A

on lamp load, max.

50 W

with resistive load, max.

5 A

Cable length

Cable length, shielded, max.

500 m

Cable length unshielded, max.

150 m

Galvanic isolation

Galvanic isolation digital outputs

Yes

between the channels, in groups of

Connection method

Plug-in I/O terminals

Yes

Dimensions

Width

45 mm

Height

80 mm

Depth

62 mm

Weights

Weight, approx.

120 g

Status

Jul 7, 2014

★ ★ ★ ★ ★
