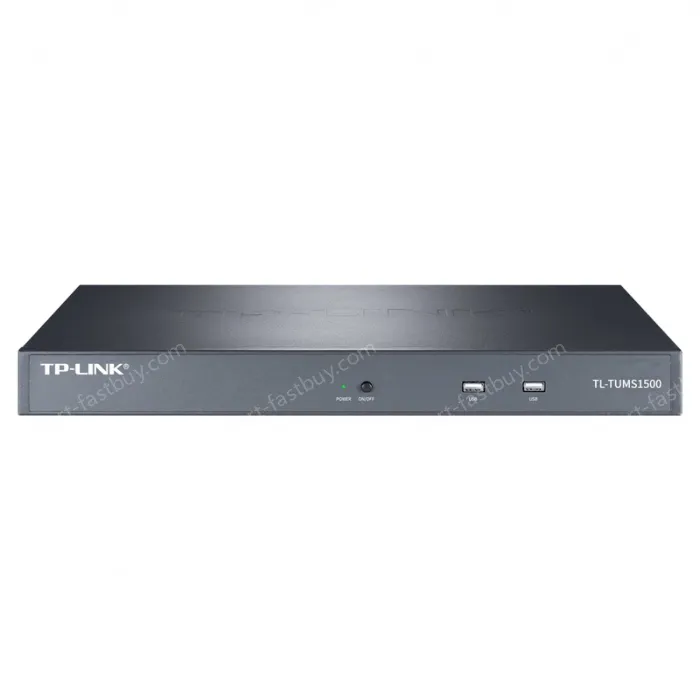

      General administration server

      ★★★★★4.94486 Reviews

      Wholesale Price

      Model: TL-TUMS1500

      Order No: TL-TUMS1500

      SKU: 1721439994745016759

      Category: Storage management products

      Brand: TP-LINK

      Size: 440.00mm, 330.00mm, 44.00mm

      Weight: 5.36kg

      Product Selection Engineer: Huankanheng

      Leading

      Shipping

      Warehouse

      China

      QTY
      -+

      Customer Service Guarantee

      100% secure payment

      Quality Guarantee

      No Reason Returns

      You May Also Like

      Selling List

      Description Reviews
      General administration server
      • Built-in TP-LINK commercial management system (TUMS), unified access and centralized management of devices
      • The factory comes with 400 security points, 50 network points, 50 SD-WAN points, 200 broadcast points, 16 parking points, 200 access control points and 500 video intercom points authorization
      • It supports three modes: fault tolerance, multiple access, and aggregation, making it more flexible
      • 400M access and forwarding bandwidth, up to 400 channels of video forwarding
      • Multiple operation modes, stand-alone HDMI interface output, PC access, to meet various scenarios
      • The system architecture is open and more compatible
      • *Extension is not supported for point authorization
      • * Parking, access control, video intercom follow-up support
      General administration server

      Specifications

      Hardware parameters
      • Processor: Intel multi-core processor
      • RAM: 16GB
      • Number of hard disk bays: None
      Interface
      • Video output interface: 2*HDMI
      • Console port: Yes, 1 x RJ45
      • Audio input and output interfaces: Yes
      • Alarm input and output interface: none
      • RJ45 network port: 2 x 10/100/1000Mbps adaptive RJ45 interfaces (multiple access, fault tolerance, aggregation)
      • USB interface: 2*USB 2.0 (front) + 2*USB 3.0 (rear)
      • Power connector: 1 pc
      Software parameters
      • Access/forwarding bandwidth: 400 Mbit/s
      • Protocol: IPv4/HTTP/NTP/DNS/ONVIF/RTSP/UPNP
      Device management
      • Factory authorized points: 400 security, 50 network, 50 SD-WAN, 200 radio, 16 parking, 200 access control and 500 video intercom
      • The maximum number of points that can be added through the ONVIF protocol is 256
      • Maximum number of devices in a single group: 100
      • Maximum number of channels in a single group: 100
      Project management
      • Maximum number of system items: 10
      • Maximum number of project levels in the system: 1
      • Maximum number of packets: 100
      • Maximum number of group levels: 8
      • Maximum number of system users: 1,000
      • Maximum number of online users: 100
      • Maximum concurrent users: 10
      Personnel management
      • The maximum number of management personnel in the system: 1w
      Message management
      • Maximum number of system messages: 100W
      • Stable event reception capacity (without images): 20 messages/s
      • Maximum event reception capacity (with pictures): 20 messages/s
      • Event linkage wall-mounting: 5 units/s
      • Event linkage recording capability: 10 times/s
      AI management
      • The maximum number of capture points in the system is ≤ the number of access points
      • Maximum face library: 1w
      • Maximum record of capture: 10W
      • Maximum license plate grouping: 1w
      • The maximum record of parking space entry and exit: 1w
      • Maximum record of driving detection: 10W
      • Face comparison response time: within 10 seconds
      Network management
      • Maximum number of verified accounts: 1,000
      • Maximum number of network terminals: 1000
      Broadcast management
      • Maximum number of missions: 500
      • Footage storage: 5G
      • Maximum concurrency of a task: 10
      • Maximum device concurrency (unicast): 200
      • Maximum device concurrency (multicast): 200
      Parking management
      • Maximum record of vehicle access: 100W
      • Maximum order record: 10w
      • Maximum billing record: 10W
      • Manual bar lift maximum record: 10W
      • Maximum record of appeal order: 10w
      Access control management
      • Access control record retention period: can be set (default 3 months)
      • The maximum number of access control records to be saved: 30W
      • Maximum number of log records: 50W
      General parameters
      • Input power: 100-240V~4A-2A 60/50Hz
      • Power supply: 250W
      • Operating temperature: 0°C~40°C
      • Working humidity: 10%~90%RH non-condensing
      • WEIGHT: 5.36KG
      • Size: 440mm× 330mm× 44mm
